High Quality Phenolic Resin Worktop Frp industrial Lab Fume
Cupboard Manufacturers HK
Lab Fume Cupboard Manufacturers HK Overview:
The fume hood monitor LCD display screen,real0time display of the face velocity speed and control valve
state ,to remind the user the fume hood’s usage state .Fume hood exhaust air valve adjustable ,also maintain
the face velocity speed of 0.5±15% .under the condition that the specificed exhaust volume and average face
velocity speed are maintained at 0.5m/s , the resistance of the fume hood is less than 70 pascals .the change
of the average face velocity speed only occurs when the sash is moving .once the sash is moved to a certain
position . the average face velocity speed will restored to 0.5m/s ,and the response speed is less than 1.5s .
When the fume hood is closed ,the air volume valve shall maintain the minimum exhaust volume of the fume
hood to meet the actual requirements .
Lab Fume Cupboard Manufacturers HK Product Specifications:
| Product Name | High Quality Phenolic Resin Worktop Frp industrial Lab Fume Cupboard Manufacturers HK |
| Size |
1200(W)*850 (D)*2350 (H) mm Customized |
| Color | Customized |
| Cabinet Body | All-galvanized steel, thickened high quality cold rolled steel plate,after acid washing,phosphide and electro galvanized,sprayed with good quality anti-corrosion static casting. The upper fume hood and the below cabinets can be divided parts |
| Table | 12.7 mm solid physical &chemical plate, edge thicken to 25.4 mm, acid & alkali resistant, Shock resistant, anti-corrosion, Environment Friendly. |
| Shell |
High quality steel plate spray molding with 1 mm,surface spray treatment with epoxy resin. Watering,electricity and gas installed in between the liner and shell. |
| Inside lining |
5 mm thickness of strong acid and alkali resistance,organic solvents resistance, anti-corrosion materials. |
| Sliding Sash | 5 mm thickness of safety explosion-proof glass,variable speed balance weight design, window height can be stopped at any position, lift freely. |
| Lighting | 30W Fluorescent lamp,shielded with explosion-proof,moisture proof glass |
| Guide plate |
anti-corrosion, resistance to strong acid and alkali, high temperature resistant, easy to disassemble and cleaning. |
| Control circuitry | Power switching, lighting and air blower,easy operation. |
| Power outlet | lab standard, water proof, with dust cover |
| Fan duct |
250W axial fan, working side wind speed 0.3-0.8 mm/s, exhaust volume 1080-1400m³/h, Noise less than 70 FB |
| Cup Sink | Oval shaped PP Cup sink |
| Water Tap | Molded in one piece copper water tap,epoxy powder coating surface with ceramic valve. |
| Exhaust Duct | Anti-corrosion PP/PVC duct |
| Standard | France NFX 15 211:2009 standard,( Certified by ANSI Z 9.5-201), also meet the USA ASHRAE 110: 2016 standard, Australia and New Zealand AS/NZS 2243.9:2009, and China Standard JG/T385: 2012, Passed the ISO9001 |
Lab Fume Cupboard Manufacturers HK FAQ:
Q2:What is the material of hume hood?
A:Our fume hood is all steel, we also have PP and stainless steel fume hoods to meet your deifferent demand.
Q3:How to pay the order?
A:Via Ali security pay, TT, or Western union.
Lab Fume Cupboard Manufacturers HK Service:

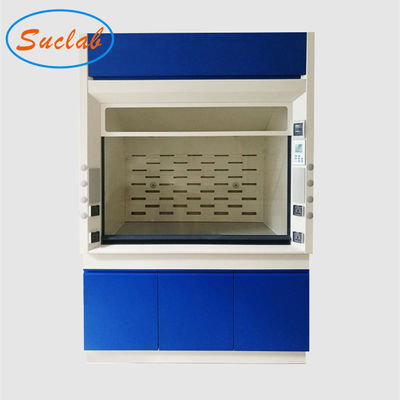

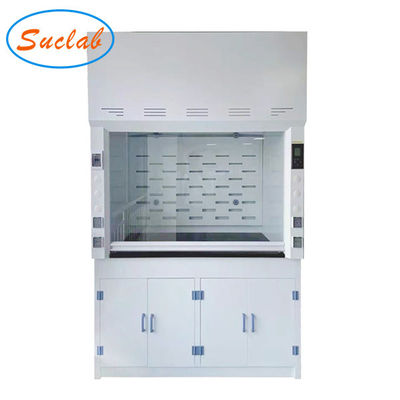

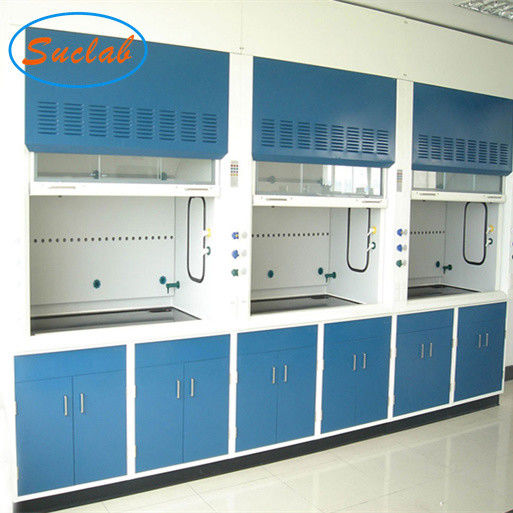

Lab Fume Cupboard Manufacturers HK Pictures:
