| Brand Name: | SUCLAB |
| Model Number: | standard |
| MOQ: | 1 pcs |
| Price: | negotiation |
| Payment Terms: | TT LC, Western Union |
| Supply Ability: | more than 10000 pcs per month |
Features of Eye Wash Hand Operated:
1. Subject: thickening
2. Coating: gloss epoxy resin coating, corrosion resistance, heat resistance, anti ultraviolet radiation.
10. Supply: 1-1/4" NPT female top or side inlet.
11. Waste: 1-1/4" NPT female outlet.
12. Main pipe: 1.2'/ 1-1/4 inches/ DN32
13. Fluid: drinking water or fire-fighting water
14. Standard pressure: 0.25~0.4MPA
15. In compliment with emergency eyewash and shower standard ANSI Z358.1.2009 and EN 15154-1:2006 + AC: 2014
16. The control switch or valve of the shower device and the eyewash nozzle can quickly start within 1 second.

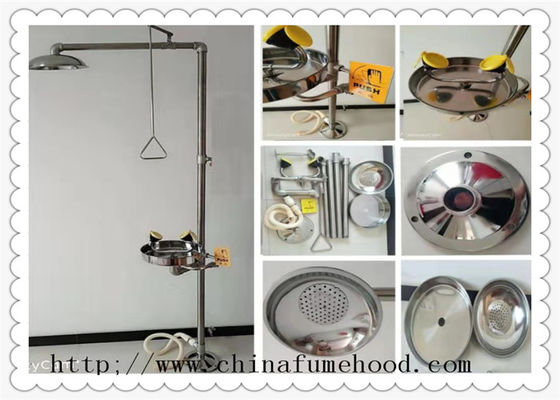

Shower
1. Shower head: 260mm dia. stainless steel
2. Activation: pull rod with triangular handle
3. Emergency shower eye : stainless steel 304 inlet pipe (1-1/4' DN32), stay-open ball valve switch, pull rod & shower head
4. Shower flow rate: 90~180L/Min

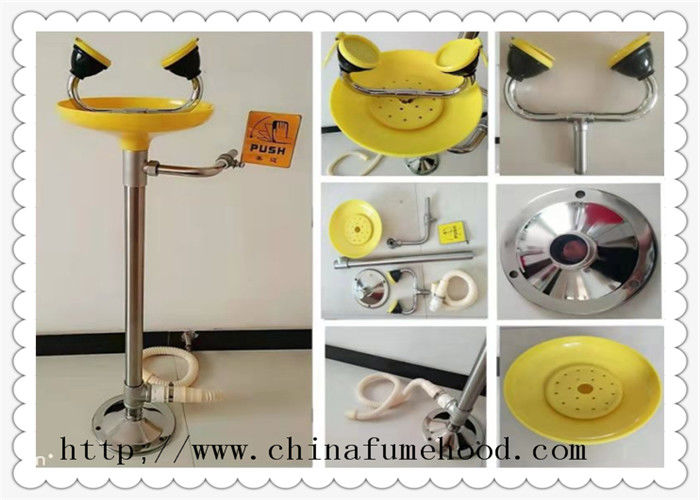

Eye wash:
1. Eye / face wash bowl: 260mm dia. stainless steel with plastic cover
2. Eye wash strainer : stainless steel, built-in chemical resistant PP
3. Eye wash : stainless steel 304 inlet pipe, stay-open ball valve switch & eye wash bowl
4. Sign: Furnished with luminous identification sign.
5. Base: anti-corrosion aluminum alloy with ABS coating
6. Eyewash flow rate: 12~18L/Min
7. Activation: push plate and foot pedal
