| Brand Name: | SUCLAB |
| Model Number: | standard |
| MOQ: | 1 pcs |
| Price: | negotiation |
| Payment Terms: | TT LC, Western Union |
| Supply Ability: | more than 10000 pcs per month |
eye washe
rTechnical Data:
| Head | 10” stainless steel |
| Eye Wash Nozzle | ABS spraying with 10” ABS waste water recycle bowl |
| Shower Valve | 1” 304 stainless steel ball valve |
| Eye Wash Valve | 1/2” 304 stainless steel ball valve |
| Supply | 1 1/4" FNPT |
| Waste | 1 1/4" FNPT |
| Eye Wash Flow ≥11.4 L/Min, shower flow≥75.7 L/Min | |
| Hydraulic Pressure | 0.2MPA-0.6MPA |
| Original Water | Drinking water or filtered water |
| Using Environment | Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and so on. |
| Special Note | If the acid concentration is too high, recommend to use 316 stainless steel. |
| When using ambient temperature below 0℃, use antifreeze eye wash. | |
| The eye wash & shower is made of high quality 304 stainless steel. | |
| Can install anti-scalding device to avoid the media temperature is too high in the pipe after the sun exposure and cause user scalding. The standard anti-scalding temperature is 35℃. | |

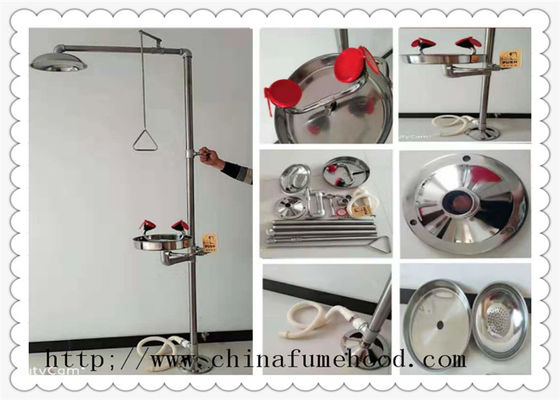

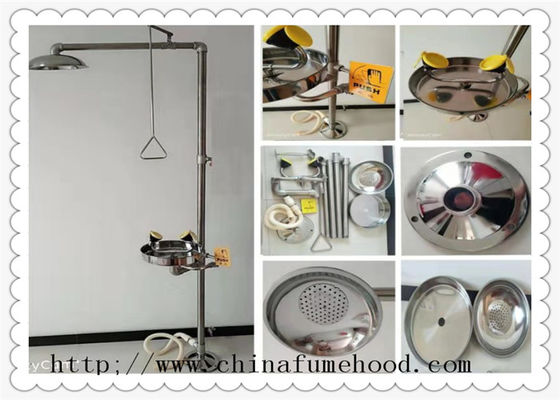

Photos :
