| Brand Name: | SUCLAB |
| Model Number: | HZJFD001 |

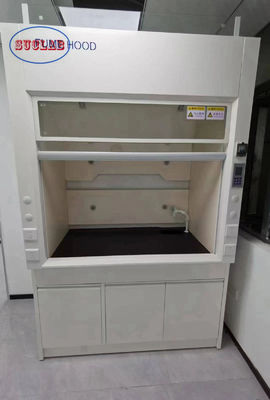

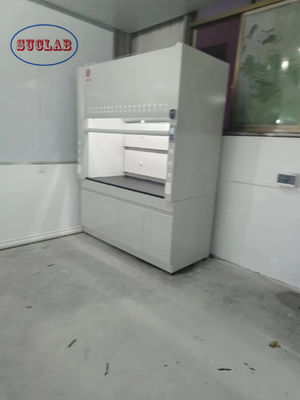

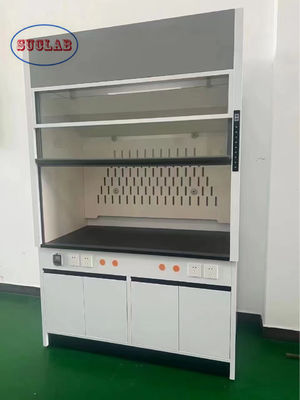

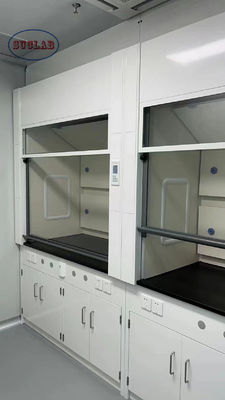

Reliable Industrial Laboratory Fume Hood Lab Fume Cabinet with Explosion-proof Features
Lab Fume Cabinet is a special type of chemical fume hood designed to provide a safe environment for laboratory personnel when handling hazardous chemicals and other materials. It is used to protect researchers from hazardous fumes, dust, and other airborne contaminants that can be generated during experiments. The Laboratory Fume Hood has a customized size that fits most laboratory environments and comes with a one-year warranty. It also features an advanced filter system that consists of activated carbon and HEPA filters to capture and remove hazardous particles from the air. The noise level of the Laboratory Fume Hood is less than 60dB, making it one of the quietest fume cupboards on the market. With its advanced safety features, the Laboratory Fume Hood is the perfect choice for any laboratory or research institution.
| Product Name | Lab Fume Cabinet |
|---|---|
| Power | 400W |
| Size | Customized |
| Material | Stainless Steel,Full Steel,Pp,FRP |
| Lighting System | LED/Fluorescent |
| Warranty | 1 Year |
| Control System | Manual/Automatic |
| Safety System | Explosion-proof/Anti-static |
| Airflow | 100m3/h |
| Voltage | 220V/50Hz |
| Model | HZJ-1000DA | HZJ-1200DA | HZJ-1500DA | HZJ-1800DA | |
| External Size (WxDxH) | 1040x800x2200mm | 1240x800x2200mm | 1540x800x2200mm | 1840x800x2200mm | |
| Internal Size (WxDxH) | 820x670x730mm | 1020x670x730mm | 1320x670x730mm | 1620x670x730mm | |
| Work Surface Height | 850mm | ||||
| Max Opening | 520mm | ||||
| Air Velocity | 0.3~0.8m/s | ||||
| Sound Emission | ≤68dB | ||||
| Exhaust Duct | PVC, Standard length: 4 meters. | ||||
| Φ300mm | |||||
| LED Lamp | 8Wx1 | 12Wx1 | 16Wx1 | 16Wx1 | |
| UV Lamp | Emission of 253.7 nanometers for most efficient decontamination | ||||
| Blower | Built-in centrifugal blower; Speed adjustable. | ||||
| Front Window | 5mm toughened glass; Motorized; Height adjustable. | ||||
| Power Supply | AC220±10%, 50/60Hz; 110V±10%, 60Hz | ||||
| Consumption | 400W | 400W | 500W | 500W | |
| Material | Exterior | Cold-rolled steel with anti-bacteria powder coating. | |||
| Interior | Compact laminate board with good acid and alkali resistance function | ||||
| Work Table | Chemical resistant phenolic resin | ||||
| Standard Accessories | UV lampx2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet | ||||
| Total load of 2 waterproof sockets: 500W | |||||
| 4.3 meters PVC exhaust duct, pipe strapx2 | |||||
| Optional Accessories | Active carbon filter /HEPA filter | ||||
| Gross Weight | 286kg | 317kg | 350kg | 400kg | |
| Shipping Size (WxDxH) | Main Body | 1190x990x1690 mm | 1390x990x1690 mm | 1690x990x1690mm | 1990x990x1690mm |
| Base Cabinet | 1190x990x900mm | 1390x990x900mm | 1690x990x900mm | 1990x990x900mm | |
| Shipping Volume | 3.1m3 | 3.6m3 | 4.3m3 | 5.1m3 | |
Lab Fume Cabinet from SUCLAB, with Model Number HZJFD001, is a top quality product, made in CHINA. It is available in Manual/Automatic Control System and comes with a 1-year Warranty. It has a Power of 400W and its Color is White. It is widely used in laboratories and other research and development facilities.
The chemical fume cupboards of the Laboratory Fume Hood provides a safe and reliable environment for experiments with hazardous substances. It can also be used for the storage of hazardous chemicals and to protect against the risks of fire and explosion during experiments or storage. The fume hoods are designed to ensure complete safety through a combination of air flow and filtration systems.
The Laboratory Fume Hood is used in various applications such as chemical synthesis, drug testing, chemical analysis, or any other application where hazardous substances are used. It is also widely used in educational institutions, laboratories, and factories. It is an essential part of any laboratory, as it provides a safe and comfortable environment for experiments and research. The fume hood cost is highly competitive, making it a great value for money.
SUCLAB Lab Fume Cabinet
Model Number: HZJFD001
Place of Origin: CHINA
Control System: Manual/Automatic
Airflow: 100m3/h
Lighting System: LED/Fluorescent
Size: Customized
SUCLAB Lab Fume Cabinet provide excellent protection for chemistry labs against hazardous fumes and vapors. With manual or automatic control systems, our fume hoods provide the highest level of safety and performance. Airflow up to 100m3/h ensures that air is continuously replaced and hazardous chemicals are safely and effectively removed. LED or fluorescent lighting systems provide the ideal lighting for your lab environment. Our fume hoods are also customizable to meet your specific needs. Get the best lab fume cupboards from SUCLAB today!
At XYZ Company, we provide the following technical support and services for our Laboratory Fume Hoods:
If you need any help with your Laboratory Fume Hood, please contact us at xyz@example.com or call us at 1-800-123-4567.
Laboratory Fume Hoods are shipped in a variety of ways, depending on the size and complexity of the system. Smaller models can be shipped via a courier service, freight carrier, or as a single unit in a wood crate or box. Larger models may require multiple crates or boxes to safely transport the system.
All laboratory fume hoods are packaged to protect them during shipping. This includes wrapping them in heavy-duty plastic, filling any voids in the packaging with packing material, and securing the package with straps or other fastening materials. The package will also include a packing list detailing the contents and any special instructions for the shipper.
In addition to the packaging, all laboratory fume hoods must be labeled with the shipper’s name and address, as well as the destination address. The package must also be clearly marked as “fragile” to ensure that it is handled with care.
