Ducted Fume Hood
Created with Pixso.

Standard Size Stainless Steel Laboratory Fume Hood - Electronic Control System

Standard Size Stainless Steel Laboratory Fume Hood - Electronic Control System

Brand Name: SUCLAB
Model Number: HZJT006
MOQ: 1 SET
Price: Negociation
Payment Terms: EXW,T/T, D/A, Western Union, MoneyGram
Supply Ability: 10000 Sets/ Month
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001,14001
Control System:
Digital
Filter Type:
HEPA
Lighting:
LED
Material:
Stainless Steel
Noise Level:
Low
Product Name:
Ducted Fume Hood
Safety System:
Automated
Sash Opening:
Adjustable
Sash Type:
Sliding
Size:
Customizable
Ventilation System:
Ducted
Warranty:
1 Year
Airflow:
200CFM
Worktop:
Epoxy Resin/phenolic Resin/stainless Steel/granite/marble For Option, Phenolic, Pp, Epoxy Resin, Or Custom-made
Function:
Chemistry Lab Room Furniture, Exhaust, Work Station, Velocity Control
Packaging Details:
Export Plywood Package
Supply Ability:
10000 Sets/ Month
Product Description

Standard Size Stainless Steel Laboratory Fume Hood - Electronic Control System

Product Specification:

Laboratory Fume Hood is a perfect solution for laboratory fume cupboards. It is made of high-quality stainless steel which provides excellent durability and is designed to last for at least one year. The control system is electronic and the lighting is LED, which is both energy-saving and cost-effective. The voltage is either 110V or 220V, making it suitable for different needs. All the components are thoroughly tested and the product is backed by a one year warranty to assure customers that they can trust in its quality and performance.



Technical Parameters:

Property Details
Product Name Laboratory Fume Hood
Installation Wall Mounted
Power 400W
Maintenance Regular
Material Stainless Steel
Size 1200*850*2350 Mm, 1599*850*2350mm, 1800*850*2350 Mm
Safety Features Auto Shut-off
Control System Electronic
Warranty 1 Year
Lighting LED


Applications:

SUCLAB's HZJT006 Laboratory Fume Hood is a perfect fit for laboratories that need to safely manage and contain hazardous fumes and particulate matter. Featuring a powerful 400W motor and LED lighting, the HZJT006 Ducted Fume Hood is designed to provide a safe and effective environment for laboratory personnel. The HZJT006 also boasts safety features such as auto shut-off, which automatically shuts off the unit if it senses hazardous levels, giving peace of mind to laboratory personnel. It also comes with a 1-year warranty and requires regular maintenance to ensure the highest quality performance. The HZJT006 is an ideal choice for laboratories that require a secure and reliable fume cupboard to help protect personnel from hazardous fumes and particulate matter.


Customization:

Customized Laboratory Fume Hood from SUCLAB

SUCLAB's Ducted Fume Hood is perfect for laboratory use. It features Brand Name: SUCLAB, Model Number: HZJT006, Place of Origin: CHINA, Maintenance: Regular, Installation: Wall Mounted, Size: 1200*850*2350 Mm, 1599*850*2350mm, 1800*850*2350 Mm, Control System: Electronic, Voltage: 110V/220. Our laboratory fume cupboards are designed with safety in mind, to ensure a safe and secure working environment.



Support and Services:

Laboratory Fume Hood Technical Support and Service

We provide technical support and service for our Ducted Fume Hoods. Our experienced technicians can help you with any technical issue you have. We offer on-site visits and phone support. We also provide installation and maintenance services to ensure your Ducted Fume Hoods are always working correctly.

If you experience any problems or need help with any of the features of your Ducted Fume Hoods, please contact us. Our team is ready to help you get the most out of your purchase.



Packing and Shipping:

The Laboratory Fume Hoodshould be packaged and shipped in a way that ensures the product is well protected and not damaged during transportation. The packaging should be robust enough to protect the product from any external sources of damage, such as water, dust, and shock.

The product should be wrapped in protective materials and placed in a double-walled, corrugated cardboard box. The box should be marked with proper labeling and packaging instructions to clearly identify the contents and ensure that it is not damaged during transit.

The box should be secured with strong straps or plastic wrap, and the edges should be padded with at least 2 inches of padding material. The box should be properly sealed with packing tape to protect against moisture and other contaminants.

It is important to ensure that the product is shipped in a safe and secure manner. The box should be clearly labeled with the proper shipping information and sent via a reliable shipping service to ensure that the product reaches its destination in a timely manner.

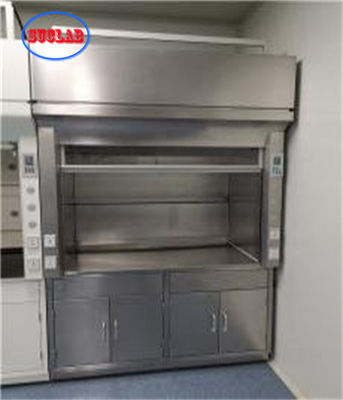

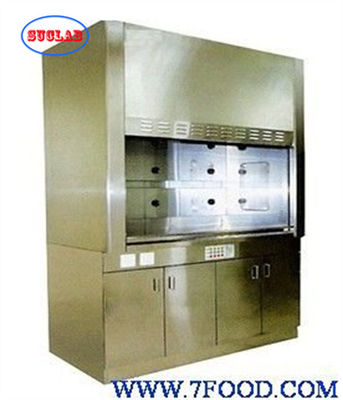

Standard Size Stainless Steel Laboratory  Fume Hood - Electronic Control System 0
Standard Size Stainless Steel Laboratory  Fume Hood - Electronic Control System 1
Standard Size Stainless Steel Laboratory  Fume Hood - Electronic Control System 2
1.Hood body&base cabinet:1.0mm full thickness 304#/316# stainless steel sheets and the surface is smooth.
2.Standard Work Surface: Stainless Steel. Optional: Phenolic Resin/Epoxy Resin/PP/Ceramic/Trespa/Granite/Marble. 3.Controller: Intelligent switch with digital display, multiple controls such as power on, fan, lighting, socket, sterilization, damper, etc.. 4.Glass sash: Use explosion-proof 5mm tempered glass, stainless steel sash handle. It is designed by the weight balance method in the mechanical principle, and the left and right are connected by synchronous wheels. 5.Lighting: Equipped with LED 30W purification lamp, the luminosity is greater than 300LUX. 6. Fume hood liner and Baffle: Use stainless steel sheets. 7. Junction box: The junction box with circuit board and AC contactor makes wiring more convenient. Suitable for 110V-230V voltage. 8. Standard accessories: 1x bench-mounted single water tap 1x PP oval cupsink 4x Electrical Outlets 1x 250 or 315mmφ stainless steel hood. 9.Optional accessories: Remote Controlled Fixture gas&water faucet Explosion-proof light Stainless steel distillation Grid Kit Acid and flammable base cabinet Ductwork Exhaust blower
Model
SSFH-120
SSFH-150
SSFH-180
External Dimension
(W*D*H)(mm)
1200*850*2350
1500*850*2350
1800*850*2350
Internal Dimension
(W*D*H)(mm)
960*680*1150
1260*680*1150
1560*680*1150
Base Cabinet Dimension
(W*D*H)(mm)
1200*800*850
(Can remove)
1500*800*850
(Can remove)
1800*800*850
(Can remove)
Exhaust air volume
700-1300m³/h
900-1700m³/h
1300-2100m³/h
Air Velocity
0.3~0.8 m/s



FAQ:

Q1: What is the Brand Name of this Laboratory Fume Hood?
A1: The Brand Name is SUCLAB.
Q2: What is the Model Number of this Ducted Fume Hood?
A2: The Model Number is HZJT006.
Q3: Where is the Place of Origin of this Ducted Fume Hood?
A3: The Place of Origin is China.
Q4: What is the application of this Ducted Fume Hood?
A4: The Ducted Fume Hood is for laboratory air purification.
Q5: Is the Ducted Fume Hood easy to install?
A5: Yes, the Ducted Fume Hood is easy to install with its simple and compact design.
Standard Size Stainless Steel Laboratory  Fume Hood - Electronic Control System 3Standard Size Stainless Steel Laboratory  Fume Hood - Electronic Control System 4Standard Size Stainless Steel Laboratory  Fume Hood - Electronic Control System 5
