| Brand Name: | SUCLAB |
| Model Number: | HZJ-SLB02 |
| MOQ: | 4 PCS |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 PCS/Month |
Gray White Laboratory Casework With Black Phenolic Resin Countertop In College Lab
Specifications:
chemical resistant laminate is HPL for the substrate, surface specially treated (plus a layer of high temperature wear resistance, acid and alkali chemical film),so that the laminate has superior physical and chemical resistance corrosion features, is designed for customized laboratory table.
The size details of chemical boards(mm-ft):
Common size:
| 1220*2440mm(4′*8′) | 1525*3660mm(5′*12′) |
| 1220*2440mm(4′*8′) | 1830*1830mm(6′*6′) |
| 1220*3660mm(4′*12′) | 1830*2440mm(6′*8′) |
| 1525*3050mm(5′*10′) | 1830*3660mm(6′*12′) |
The more details :
| STRUCTURE | C frame / H frame / Pedestal / Free standing |
| SIZE | Wall Bench: L*750*850mm / Island Bench :L*1500*850mm, can be customized |
| COLOR | Optional |
| BODY MATERIAL |
1) 1.0mm /1.2mm cold-rolled steel production,surface by epoxy resin powder coating.
2) 18mm high pressure semi-solid wood (MDF) covered with 0.4mm high pressure laminate(HPL)
3) 304# stainless steel material
4) Polypropylene (PP)
5) Fiber reinforce plastic (FRP) |
| WORKTOP | 1) 15mm/19mm/25mm thickness Epoxy Resin tops,black,grey,white color for option 2) 13mm/16mm/19mm/25mm thickness Phenolic Resin tops 3) 1.0mm/1.2mm 304# stainless steel cover with 18mm thickness MDF as a worktop. 4)20mm thickness laboratory grade ceramic tops 5)20mm/30mm/50mm marble tops,black color. |
| HANDLE | stainless steel handle / aluminum alloy handle |
| HINGE | DTC 175 degree open type hinge / stainless steel hinge |
| ADJUSTABLE FEET | Special anchor nylon die-casting stainless steel screw ,can adjust 30-50mm height. |
| ACCESSORY |
Reagent shelf ,water sink and tap ,gas valve ,elecgtricl ,eye washer will be option |
Size can be customized as your requirement.
Application Laboratory test centre chemical resistant laminate chemical film compact laminate is a perfect choice for Hospital, chemical laboratory,physics laboratory work surfaces and the surface of the table and other places that require high, Classroom etc..
Quick Detail
| Product Name | Laboratory Casework |
| Dimension | (Customized)L*750/1500W*850H(mm) |
| Structure | Full steel structure, cabinet with 1.0mm thick cold rolled steel plate through integral forming, |
| Worktop | 12.7mm thick lab phenolic resin countertops, chemicals resistant the acid and alkali resistant |
| Door and Drawer Panel | All cabinet and drawers body used 1.0mm thick of cold rolled steel construction with epoxy powder coated finish. |
| Slideway | Self-closing three section slide rail, no noise. |
| Handle | Embedded aluminum alloy or steel handle with epoxy coating. |
| Socket | double socket electronic with switch and cable box. |
Technical Parameter
| Product Name | Laboratory Casework |
| Material | 1.0mm thick cold rolled steel plate |
| Dimension | (Customized)L*750/1500W*850H(mm) |
| Worktop | Using laboratory special 12.7mm phenolic resin board, double thick edge. Resistance to acid, alkali, corrosion resistance. |
| Frame |
Full steel structure, cabinet with 1.0mm thick cold rolled steel plate through integral forming, Smooth, not to hurt the hand,inside a front and a back upright post, with reinforcements, in order to increase the bearing capacity and the cabinet of impact resistance. |
| Cabinet | Each spare parts according to the different weight bearing with different thickness of high quality cold-rolled steel plate for material, surface after pickling, phosphating, uniform gray white epoxy spray, beautiful appearance, special force position required stiffener, its carrying capacity and anti impact capability can achieve laboratory use requirements. |
| Door and Drawer Panel | Using internal and external double-layer structure, the drawer for cold-rolled steel sheet through integral forming, support bearing capacity is strong, After the seal plate bending,connected to the outer panel of the drawer via drilling screws, All blend into one harmonious whole. appearance, elegant appearance. |
| Bottom Plate of the Cabinet | Cold rolled steel through integral forming is added in the reinforcement, in order to strengthen its bearing capacity,preventing plate from stress and deformation. |
| Handle | According to customer demands with plastic inner concave buckle or alloy matt handle, beautiful appearance, humanized design. The cabinet body can be completely empty opened, not the middle bracket. The cabinet with integrated forming active board adjusting device, movable board can be continuously step adjustabled. |
| Door Meader | With touch beads, can clamp the door anti-collision glue, prevent shut the door when the drawer collision, wear surface spraying layer and noise. |
| Movable Back Board | Using movable type, free disassembly lifting type structure, and is convenient for the maintenance of water, electricity, gas pipelines in use process etc. |
| Movable Laminate | Add stiffener, to strengthen its load-bearing capacity, prevent the plate deformation, steel plates with pin, can be freely disassembled, also can adjust the height. |
| Hinges | 175° all open type hinge, corrosion protection, no noise, do not rebound, good strength, not broken, long life and other characteristics. |
| Slide Way | Excellent silencing rails, to ensure that the drawer is fully opened, the load-bearing and deformation. The drawer is not only the daily switch without noise, more make the stocky firmly, not easily deformed. |
| Adjustable Feet | Free disassembly, step by step continuous height adjustment. |
| Bumper | When shutting the door and drawer,to prevent collision,wear surface spraying layer and noise. |

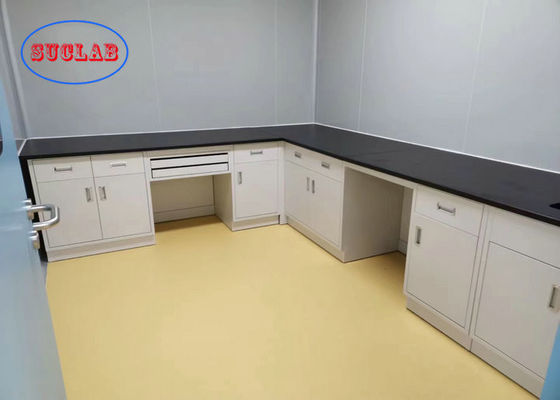

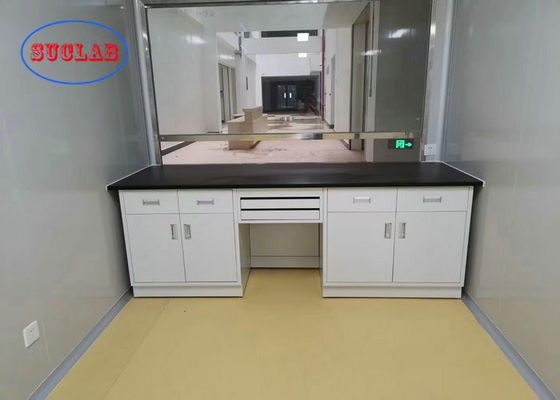

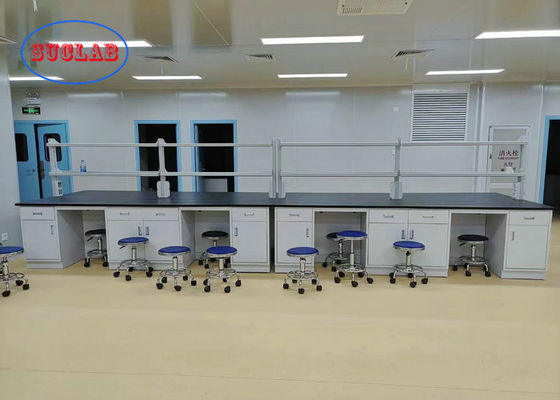

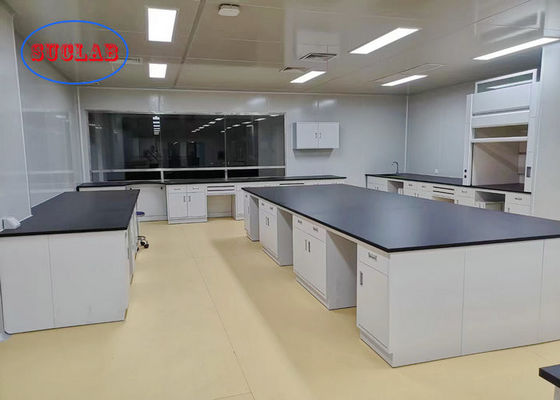

Product Photo
