| Brand Name: | SUCLAB |
| Model Number: | HUAZHIJUN-168 |
| MOQ: | 5Piece |
| Price: | Negotiation |
| Payment Terms: | EXW,T/T |
| Supply Ability: | 3000 Pieces Each Month |
Purified Good Quality Steel Wood Anti-corrosion Chemical
Resistance Laboratory Workbench Specification
Chemical Laboratory Workbench Specification Overview:
Steel-wood experimental bench: Chemical Laboratory Workbench SpecificationThis structure is
composed of steel brackets, cabinets, countertops and feet and other components. The steel
bracket is made of thin-walled steel, the foot bracket has anchor screws, and there is a pipeline
space between the steel brackets. The cabinet is a wooden component that can be flexibly hung
on steel supports. Although this material has anti-corrosion paint on its surface, it is inevitably
rusted and is generally used in instrument analysis rooms. The advantages of steel test benches:
strong and beautiful, can be used for more than 10 years without deformation, can resist strong
acid and alkali, which is the development direction of laboratory furniture.
Chemical Laboratory Workbench Specification Product Specifications:
| Worktop | a.12.7/16/19mm lab grade phenolic resin countertop. b.16/19mm epoxy resin countertop. c. 20mm ceramic countertop. d. 20mm stainless steel countertop mounted with 18mm plywood/MDF. e. 16/20mm trespa countertop. |
| Structure | Floor mounted/C-frame/H-frame/O-frame or customization |
| Size | L*600/750/1500*850/900mm.(LxWxH) or customization |
| Color | White, gray, blue or specified by customer, we can offer color charts. |
| Cabinet /drawer/door | 18mm chipboard/MDF/plywood with melamine/HPL on both sides, depending on customers' budget and needs. Panel edges with 2mm PVC edging cemented by imported glue, excellent performance on water resistance. |
| Cabinet size | 450/500/600/900/1000mm wide or customized size. |
| Frame | 60x40x2.0/40x40x1.5mm/30x30x1.5mm steel pipe coated with epoxy resin powder. |
| Hinge | 304 stainless steel heavy-duty thick hinge. |
| Handle | U-shape 128/160mm 304 S.S handle, aluminum alloy grab handle,or any type specified by customers. |
| Reagent shelf | made up of tempered glass and steel plate. Optional model: normal/American model. |
| Wall mounted cabinet | Single/double door with complete wood door or wood door embedded with glass, with 1 adjustable shelf. |
| Sink | Polypropylene/ceramic/epoxy resin sink. Normal size: 550x450x310/440x340x280mm. |
| Faucet | single-outlet/triple-outlets cold-water faucet, hot-cold water faucet. |
| Socket | Universal/British/European socket, water-proof or explosion proof socket. with steel separate standout or long aluminum electric trunking, based on customers' local needs. |
| Other available accessories | PP/stainless steel pegboard, eye wash, emergency shower,lab stool etc. |
Chemical Laboratory Workbench Specification Required information prior to designing and offering quote:
1. Chemical Laboratory Workbench Specification CAD or draft plan drawing
2. Specify lab area which should be equipped with lab furniture.
3. Design selection as per our given catalogue.
4. Material requirements especially for worktop&cabinet.
5. Paticular or speical requirements if necessary.
Chemical Laboratory Workbench Specification Why choose us?
1. More than fifteen years of abundant production and service experience.
2. Following SEFA8M and ASHRAE110 US standards, the toppest and strictest standard in this field.
3. Strict quaity control leads to stable and prominent product quality.
4. Abundant and fashionable product designs/strong customized ability,satisfying taste of different clients.
5. Extremely simple installation help clients save cost and time, due to unique structure design.
6. Online service to offer technical support or deal with any claims within 1 hour.

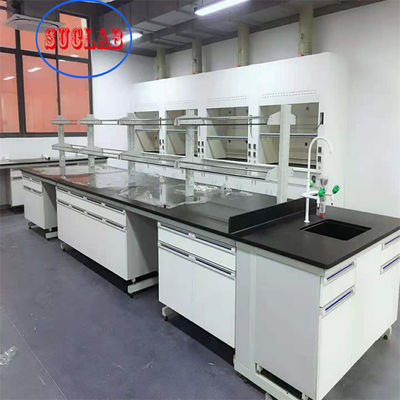

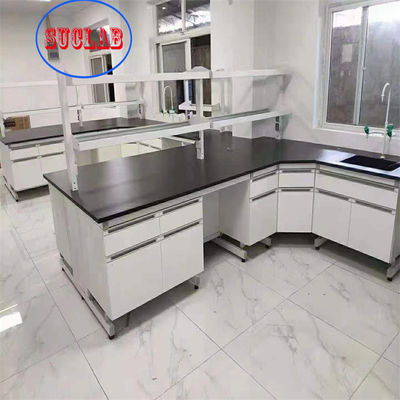

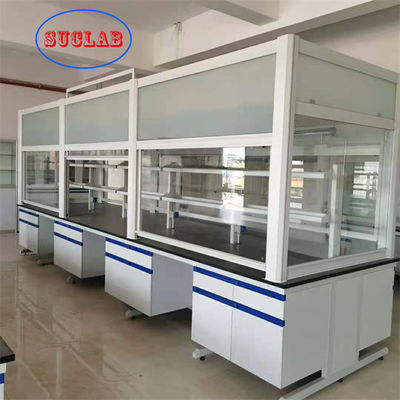

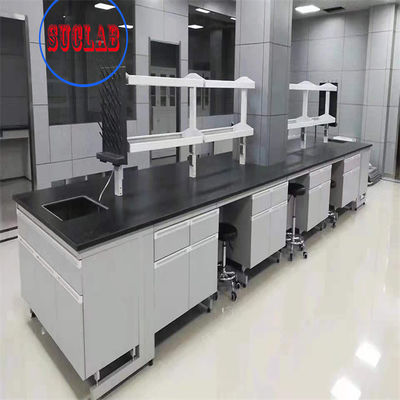

Chemical Laboratory Workbench Specification Pictures:
